Material Duct Lifter – Lift Easy

What Is a Material Duct Lifter?

A Material Duct Lifter — also known as a duct installation lift, HVAC duct lifter, ceiling lift, material hoist, or overhead installation lift — is a portable mechanical or electrically assisted lifting device designed to raise ductwork, HVAC equipment, ceiling panels, and other construction materials to the desired installation height, where they are held in position while workers complete fastening and installation work above head height. The device eliminates the need for scaffolding or multiple workers to manually hold materials overhead during installation — significantly improving safety and productivity on HVAC and ceiling system projects.

The Lift Easy Material Duct Lifter (Model LEDL7.9) lifts materials up to 7.9 m fork height with a capacity of 200 kg at 40 cm offset, 150 kg at 60 cm, and 100 kg at 80 cm offset. Features foldable legs, roller wheels, and an optional 220V electric winch. Ideal for HVAC installation and maintenance across commercial and industrial buildings in Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait.

Description

The Lift Easy Material Duct Lifter is a purpose-built overhead installation tool designed to raise and hold ductwork, HVAC equipment, ceiling systems, and construction materials at installation heights of up to 7.9 metres — enabling one or two workers to complete ceiling and overhead installations safely and efficiently without scaffolding, elevated work platforms, or multiple workers holding materials overhead.

The foldable leg design and integrated roller wheels are the practical convenience features that make the LEDL7.9 uniquely deployable in commercial and industrial building environments. The legs fold flat for compact storage and transport — reducing the stowed height and length to dimensions that can be wheeled through standard single doorways without dismantling the unit. At the installation location, the legs are unfolded and the stabiliser lowered to provide a 1.68 m wide stable base for safe elevated lifting operations.

The capacity-offset relationship of the LEDL7.9 is an important operational consideration: rated capacity reduces as the load is placed further from the mast centreline. At 40 cm offset, the full 200 kg capacity is available; at 60 cm, capacity reduces to 150 kg; at 80 cm, capacity reduces to 100 kg. This is a standard engineering characteristic of all cantilevered lifting devices and is not a limitation unique to this model — always verify the load weight and offset before lifting.

As a trusted material duct lifter supplier, distributor, and manufacturer in Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait, Lift Easy delivers HVAC installation solutions with full technical support and regional delivery.

Key Features

• Fork Height up to 7.9 m: Reaches installation heights for ductwork and ceiling equipment in commercial and industrial buildings — reducing the need for elevated work platforms or scaffolding during HVAC installation.
• Foldable Legs for Compact Storage: Legs fold flat for easy storage and transportation — the compact stowed profile rolls through standard single doorways for productive versatility between installation areas.
• Built-in Roller Wheels for Easy Transport: Integrated roller wheels allow the lifter to be moved easily while stowed — no separate trolley or vehicle required to reposition between installation locations within the building.
• Stabiliser Base Width 1.68 m: Lowered stabiliser extends the base to 1.68 m for a stable, safe working platform during overhead lifting and installation at heights up to 7.9 m.
• Capacity 200 kg at 40 cm Offset: Full rated capacity of 200 kg available at 40 cm fork offset — 150 kg at 60 cm, 100 kg at 80 cm — covering the full range of HVAC duct and ceiling panel weights.
• Optional 220V Electric Winch: Electric winch upgrade available upon request — enables powered lifting to reduce operator fatigue on high-volume installation projects and for heavier duct sections.
• Suitable for HVAC and Ceiling Installation: Purpose-built for lifting and placing ductwork, fan coil units, ceiling panels, and similar overhead construction materials during building fit-out and maintenance.
• Rolls Through Standard Doorways: Compact stowed dimensions enable the lifter to be wheeled through standard single doorways — moving between rooms and areas without dismantling or disassembly.

Use of the Product

• Unfold the legs and lower the stabiliser to the operating position at the installation location
• Set the fork height to the lowest position and load the duct section or ceiling panel onto the forks
• Crank or operate the winch (if electrically equipped) to raise the material to the required installation height
• Hold the material in position using the lifting mechanism while workers complete fastening and installation
• Lower the forks to collect the next section — repeat the cycle for efficient continuous installation workflow
• Fold the legs and raise the stabiliser for compact stowed position — wheel to the next installation location through doorways
• Adjust the fork position and offset to match different duct sizes and ceiling panel dimensions as required

Applications

• HVAC and Mechanical Contracting — Lifting and positioning ductwork, fan coil units, air handling equipment, and HVAC infrastructure during fit-out and installation across commercial and industrial buildings in Dubai and the UAE
• Building Services and MEP Contractors — Raising mechanical, electrical, and plumbing services equipment and systems to ceiling installation heights in large commercial, hospitality, and industrial buildings across Saudi Arabia and Qatar
• Ceiling and Interior Fit-out Projects — Lifting and positioning ceiling tiles, grid systems, access panels, and suspended ceiling components during interior fit-out projects across GCC commercial and residential developments
• Industrial Maintenance and Overhaul — Supporting HVAC system maintenance, duct inspection, and equipment overhaul at industrial facilities, warehouses, and manufacturing plants across Oman and Bahrain
• Retail and Commercial Developments — Installation of HVAC and ceiling systems in shopping malls, commercial office buildings, and hospitality facilities during fit-out and refurbishment projects across Kuwait and Saudi Arabia
• Healthcare and Cleanroom Facilities — Precise, controlled ceiling and ductwork installation in hospitals, pharmaceutical cleanrooms, and healthcare facilities where scaffolding would cause contamination and operational disruption

Technical Specifications

Related Products

• Manual Stacker – Lift Easy — Manual stacker for pallet and goods lifting and stacking in warehouses
• Hydraulic Scissor Lifting Table — Adjustable hydraulic work table for ergonomic work positioning
• Shop Crane – Lift Easy — Mobile shop crane for engine and machinery lifting in workshops
• Electric Chain Hoist – Lift Easy — Powered chain hoist for overhead lifting in factories and workshops

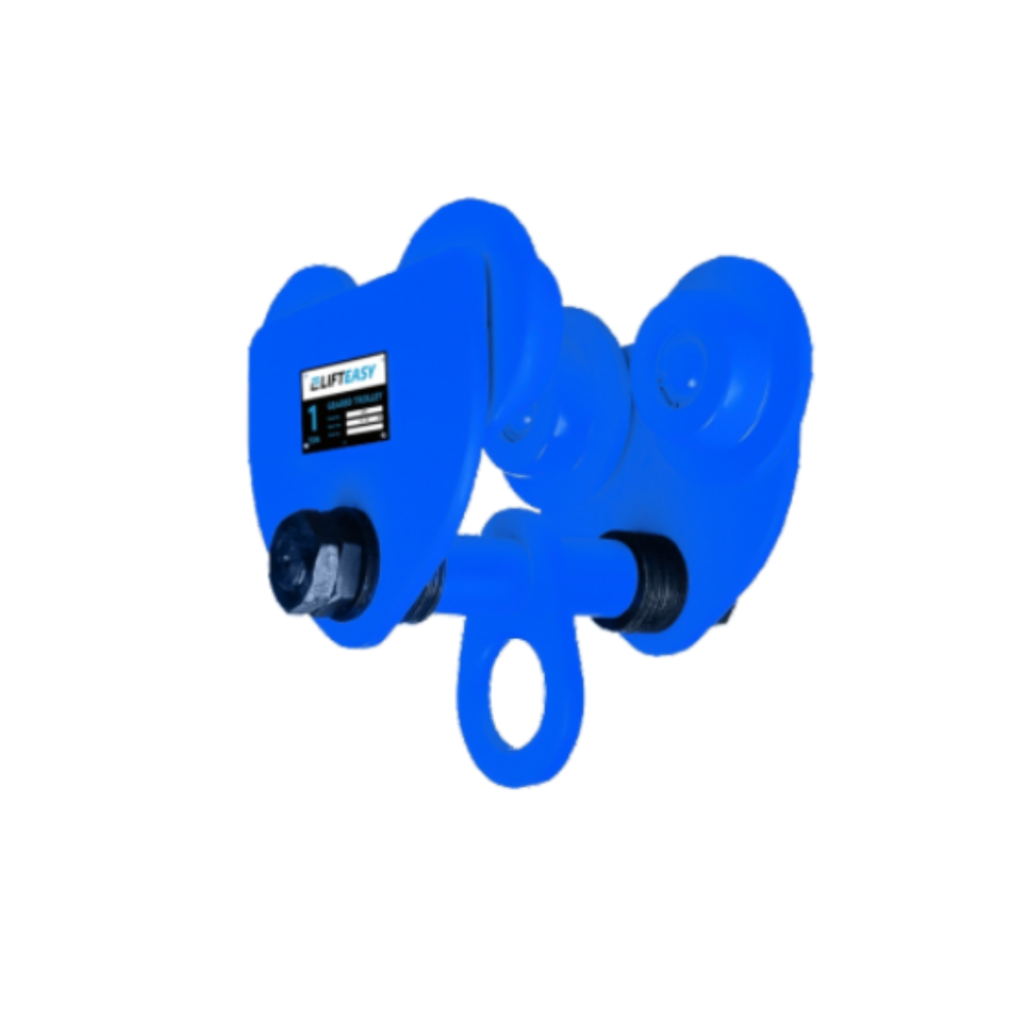

• Plain Beam Trolley – Lift Easy — Manual beam trolley for horizontal traversing on overhead I-beam tracks
• Beam Clamp – Lift Easy — I-beam clamp for suspending hoists from overhead structural steelwork

Why Choose Lift Easy?

• GS & CE Certified Products — every Lift Easy product meets international safety and quality standards trusted by industries across the GCC
• Direct Supplier, Distributor & Manufacturer — serving Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait with fast regional delivery
• British Standards Quality — manufactured to BS EN standards with full test certification and technical documentation available on request
• Dedicated After-Sales Support — technical assistance, product certificates, and expert guidance from our GCC-based team
• Bulk Supply & Ready Stock — competitive pricing for wholesale, project, and industrial orders across all GCC markets
• 1 Business Day Response — our team responds to all procurement and technical inquiries within 1 business day

Frequently Asked Questions

Q1. What is a material duct lifter used for?

• Raising ductwork, HVAC equipment, ceiling panels, and construction materials to overhead installation heights up to 7.9 m
• Holding materials in position at installation height while workers fasten and connect — eliminating the need for additional workers to manually support the load
• Replacing scaffolding, elevated work platforms, and multi-worker overhead holding during HVAC and ceiling system installation
• Improving safety and productivity on ceiling and overhead installation projects in commercial and industrial buildings across the GCC

Q2. What is the maximum height and capacity of the LEDL7.9?

• Maximum fork height is 7.9 m — sufficient for high-bay industrial buildings, large commercial buildings, and warehouse facilities
• Capacity is 200 kg at 40 cm fork offset, 150 kg at 60 cm offset, and 100 kg at 80 cm offset
• The offset is measured from the mast centreline to the load centre of gravity — always verify load weight and offset before lifting
• Contact Lift Easy for guidance on applications requiring heights beyond 7.9 m or capacities outside the stated range

Q3. What does the optional electric winch provide?

• The 220V electric winch replaces the manual crank mechanism — enabling powered lifting without manual cranking effort
• This is particularly valuable on high-volume installation projects where repeated manual cranking would cause significant operator fatigue
• The electric winch operates on standard 220V single-phase supply — standard in most commercial and industrial buildings across the GCC

Q4. Can the material duct lifter pass through standard doorways?

• Yes — the stowed dimensions of 2.18 m height × 0.86 m length × 0.80 m width allow the lifter to pass through standard single doorways
• The foldable legs and compact stowed profile are specifically designed for easy movement between rooms and areas in buildings under fit-out
• No disassembly is required to move through doorways — simply fold the legs and lower the stabiliser and wheel to the next location

Q5. What stabiliser base width is required for safe operation?

• When the stabiliser is lowered to the operating position, the base width extends to 1.68 m
• This 1.68 m stabilised base provides a safe, stable operating footprint for lifting operations at heights up to 7.9 m
• Always ensure the full stabiliser is deployed and the floor surface is firm and level before lifting above 2 m

Q6. Do you supply material duct lifters across the GCC?

• Yes — Lift Easy supplies to Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait
• We offer bulk supply, project orders, and after-sales technical support across all GCC markets
• Contact us at [email protected] or visit our full product catalogue at lift-easy.com/shop
