Tirfor Winch – Lift Easy

What Is a Tirfor Winch?

A Tirfor Winch — also known as a cable puller, wire rope grip hoist, hand-powered winch, come-along winch, or grip hoist — is a portable, manually operated wire rope pulling and lifting device that uses a reciprocating jaw mechanism to grip, advance, and tension a wire rope in both forward and reverse directions. Unlike drum winches, a tirfor winch works with an unlimited length of wire rope — making it ideal for long-distance pulling, vehicle recovery, rigging, and tensioning operations in locations without access to power sources.

The Lift Easy Tirfor Winch range — models LE0.8 through LE5.4 — covers lifting capacities from 0.8 tonnes to 5.4 tonnes (pulling capacity 1.2T to 8.1T), with rope diameters from 8 mm to 20 mm. Built from high-strength aluminium alloy to DIN safety standards for construction, recovery, and industrial operations across Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait.

Description

The Lift Easy Tirfor Winch is a compact, field-deployable, manually operated wire rope pulling and lifting device built from high-strength aluminium alloy for lightweight portability without compromising on rated capacity. The reciprocating jaw mechanism grips the wire rope during the forward stroke and locks it in position during the return stroke — creating a ratchet-like action that advances the rope in precise, controlled increments regardless of load resistance.

The unlimited rope length capability is the defining operational advantage of a tirfor winch over conventional drum winches. A drum winch can only pull loads over a distance equal to the drum capacity — typically 20 to 30 metres — before the drum is fully wound and the pull must stop. The Lift Easy Tirfor Winch feeds the wire rope through the jaw mechanism continuously — any length of wire rope can be used, enabling pulling operations over hundreds of metres if required. This makes the tirfor winch the standard tool for long-distance cable tensioning, stringing operations, and remote site vehicle recovery where drum winch capacity would be insufficient.

The two-speed drive step on the LE3.2 and LE5.4 models provides additional operational versatility — a high-speed step for fast rope advancement under light load, and a low-speed step for maximum pulling force at rated capacity. This dual-speed capability improves efficiency on tasks that require initial rope positioning before applying full pulling load.

As a trusted tirfor winch supplier, distributor, and manufacturer in Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait, Lift Easy delivers certified pulling and lifting solutions with full technical support and regional delivery.

Key Features

• Capacity Range 0.8T–5.4T Lifting: Four models from LE0.8 to LE5.4 covering the full range of wire rope pulling and lifting requirements for construction, recovery, and rigging operations across the GCC.
• Unlimited Wire Rope Length: Jaw mechanism feeds wire rope of any length — enabling long-distance pulling and recovery operations without rope length limitations of drum-type winches.
• Lightweight Aluminium Alloy Body: High-strength aluminium construction provides sufficient strength for rated capacity while keeping the unit compact and portable for field transport and deployment.
• Suitable for Outdoor and Harsh Environments: Designed to operate in bad weather, dusty conditions, and remote locations — no electrical power required, fully self-contained and ready for deployment anywhere.
• Double Pawl Brake System: Provides quick, reliable braking with smooth transmission and low gearing tolerance — free of jerks during loading and controlled lowering operations.
• Two-Speed Drive on LE3.2 and LE5.4: High-speed step for fast rope advancement under light load; low-speed step for maximum pulling force at rated capacity — improving operational efficiency on demanding pull jobs.
• Built to DIN Safety Standards: All structural components manufactured and tested to DIN 7355 for heavy industrial pulling and lifting applications — certified for use on major GCC construction and industrial sites.
• Standard 20 m Wire Rope Included: All models supplied with 20 m of standard wire rope — sufficient for most construction site and maintenance pulling applications; longer rope available upon request.

Use of the Product

• Set up the tirfor winch at a secure anchor point — use a suitable anchor rated for the full pulling load
• Feed the wire rope through the jaw mechanism in the correct direction (marked on the unit)
• Attach the rope end to the load using appropriate rigging hardware — shackle, hook, or rigging sling
• Operate the forward handle in a reciprocating motion — each stroke advances the rope and the load
• For two-speed models, select the appropriate drive step for the load and distance requirement
• To lower or release, operate the reverse handle — the jaw mechanism releases and reverses the rope incrementally
• Release the load gently and in a controlled manner — never release the winch under full load without controlled lowering

Applications

• Construction and Civil Projects — Pulling, tensioning, and positioning heavy structural components during construction and civil infrastructure projects across Dubai and the UAE
• Vehicle and Equipment Recovery — Recovering stuck vehicles, plant machinery, and heavy equipment from difficult terrain on remote construction and maintenance sites across Saudi Arabia and Oman
• Overhead Line and Cable Stringing — Tensioning and stringing overhead electrical lines, data cables, and wire rope systems during utility and telecommunications installation across Qatar and Bahrain
• Oil and Gas Field Operations — Pulling and rigging heavy equipment and components during onshore and offshore oil and gas installation, maintenance, and inspection operations across Kuwait and Saudi Arabia
• Maritime and Port Operations — Pulling, positioning, and securing heavy marine equipment and cargo during port operations and ship maintenance activities at GCC marine facilities
• General Industrial Maintenance — Pulling and positioning heavy machinery and components during installation, maintenance, and relocation operations at factories and industrial plants across all GCC markets

Technical Specifications

Related Products

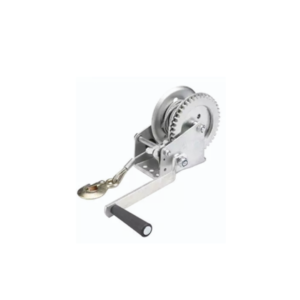

• Hand Winch – Lift Easy — Manual wire rope winch for drum-type pulling and lifting applications

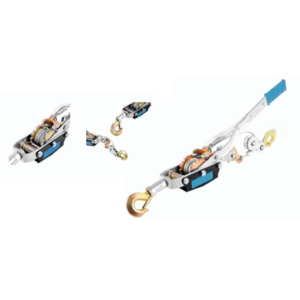

• Hand Puller – Lift Easy — Cable puller for wire rope tensioning and load securing
• Chain Block – Lift Easy — Manual chain hoist for overhead lifting applications
• D Shackle – Lift Easy — Certified D shackles for rigging and winch connection

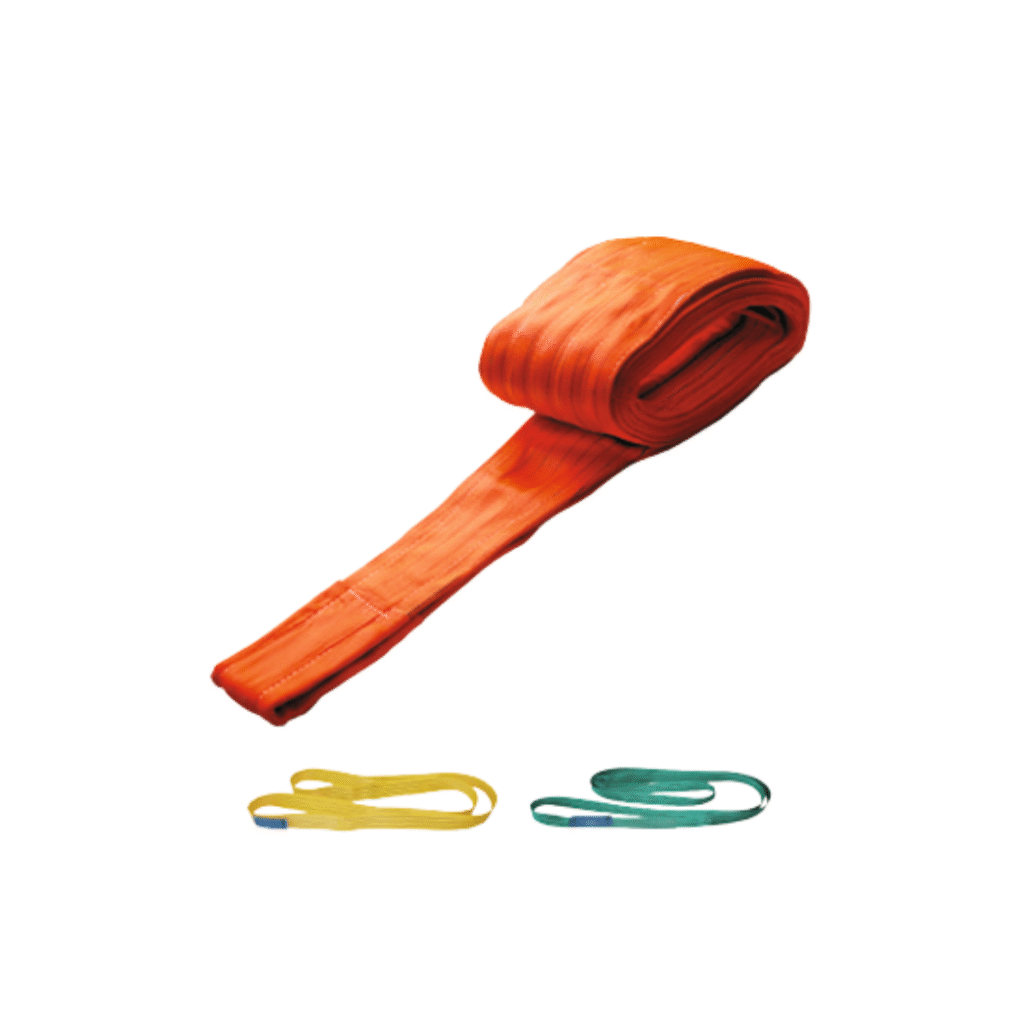

• Webbing Sling – Lift Easy — CE certified slings for load securing and rigging applications
• Chain Sling – Lift Easy — Grade 80 chain sling for overhead and rigging lifting operations

Why Choose Lift Easy?

• GS & CE Certified Products — every Lift Easy product meets international safety and quality standards trusted by industries across the GCC
• Direct Supplier, Distributor & Manufacturer — serving Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait with fast regional delivery
• British Standards Quality — manufactured to BS EN standards with full test certification and technical documentation available on request
• Dedicated After-Sales Support — technical assistance, product certificates, and expert guidance from our GCC-based team
• Bulk Supply & Ready Stock — competitive pricing for wholesale, project, and industrial orders across all GCC markets
• 1 Business Day Response — our team responds to all procurement and technical inquiries within 1 business day

Frequently Asked Questions

Q1. What is a tirfor winch used for?

• Pulling, tensioning, and positioning heavy loads horizontally, vertically, or at any angle using a manually operated jaw mechanism and wire rope
• Vehicle and equipment recovery from difficult terrain where powered recovery equipment cannot access
• Overhead line stringing and cable tensioning during utility, telecommunications, and power line installation
• Rigging and load positioning on construction sites, oil and gas operations, and marine facilities across the GCC

Q2. What is the advantage of a tirfor winch over a drum winch?

• A tirfor winch feeds wire rope of any length through the jaw mechanism — not limited by drum capacity
• A drum winch can only pull over a distance equal to the drum rope capacity; a tirfor can pull over any distance
• The reciprocating jaw mechanism applies full rated pulling force at any rope position — not just within drum capacity

Q3. What models are available and what are their capacities?

• LE0.8 (0.8T lift / 1.2T pull), LE1.6 (1.6T / 2.4T), LE3.2 (3.2T / 4.8T), and LE5.4 (5.4T / 8.1T)
• LE3.2 and LE5.4 have a two-speed drive step for fast rope advancement and maximum pulling force as required
• All models are supplied with 20 m standard wire rope; longer ropes are available upon request

Q4. Does the tirfor winch require electrical power?

• No — the Lift Easy Tirfor Winch is entirely manually operated with no electrical, hydraulic, or pneumatic connections required
• This makes it ideal for remote locations, field operations, and environments without power supply
• The jaw mechanism advances and locks the rope mechanically — reliable in any weather or temperature condition

Q5. What safety precautions are needed when using a tirfor winch?

• Always anchor the tirfor securely to a rated anchor point capable of withstanding the full pulling load plus safety margin
• Use appropriate rigging hardware — rated shackles, hooks, and slings — for all rope connections to the load and anchor
• Never allow anyone to stand in line with the wire rope during operation — a rope failure under tension is a serious hazard
• Always use the full rated wire rope diameter for the model being used — do not substitute with smaller diameter rope

Q6. Do you supply tirfor winches across the GCC?

• Yes — Lift Easy supplies to Dubai, UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait
• We offer bulk supply, project orders, and after-sales technical support across all GCC markets
• Contact us at [email protected] or visit our full product catalogue at lift-easy.com/shop
